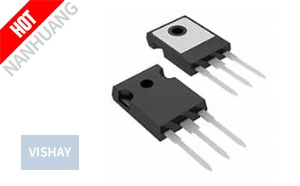

IRFPS40N50L Images
- Manufacturer: Vishay
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: SUPER-247™ (TO-274AA)
- Description: MOSFET N-CH 500V 46A SUPER247
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
IRFPS40N50L Specifications:
- MfrPart.: IRFPS40N50L
- Mfr: Vishay Siliconix
- Description: MOSFET N-CH 500V 46A SUPER247
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tube
- Series: -
- PartStatus: Obsolete
- FETType: N-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 500 V
- Current-ContinuousDrain(Id)@25°C: 46A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 10V
- RdsOn(Max)@IdVgs: 100mOhm @ 28A, 10V
- Vgs(th)(Max)@Id: 5V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 380 nC @ 10 V
- Vgs(Max): ±30V
- InputCapacitance(Ciss)(Max)@Vds: 8110 pF @ 25 V
- FETFeature: -
- PowerDissipation(Max): 540W (Tc)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Through Hole
- SupplierDevicePackage: SUPER-247™ (TO-274AA)
- IRFPS40N50L Vishay, MOSFET N-CH 500V 46A SUPER247, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
IRFPS40N50L, Vishay authentic parts in stock from Vishay authorized distributors, order today, can ship immediately.
