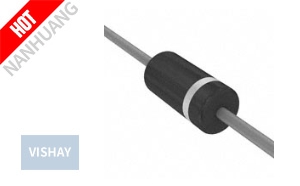

IMS02WWDEB220K40 Images
- Manufacturer: Vishay
- Category: Inductors, Coils, Chokes~Fixed Inductors Package/Case: Axial
- Description: FIXED IND 22UH 545MA 1.12 OHM TH
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
IMS02WWDEB220K40 Specifications:
- MfrPart.: IMS02WWDEB220K40
- Mfr: Vishay Dale
- Description: FIXED IND 22UH 545MA 1.12 OHM TH
- Product Category: Inductors, Coils, Chokes~Fixed Inductors
- Package: -
- Series: IMS-2WWD-40
- PartStatus: Obsolete
- Type: Wirewound
- Material-Core: Ferrite
- Inductance: 22 µH
- Tolerance: ±10%
- CurrentRating(Amps): 545 mA
- Current-Saturation(Isat): 160mA
- Shielding: Shielded
- DCResistance(DCR): 1.12Ohm Max
- Q@Freq: 42 @ 2.5MHz
- Frequency-SelfResonant: 36MHz
- Ratings: -
- OperatingTemperature: -55°C ~ 125°C
- InductanceFrequency-Test: 2.5 MHz
- Features: -
- MountingType: Through Hole
- Package/Case: Axial
- SupplierDevicePackage: -
- Size/Dimension: 0.133 Dia x 0.335 L (3.38mm x 8.51mm)
- IMS02WWDEB220K40 Vishay, FIXED IND 22UH 545MA 1.12 OHM TH, Inductors, Coils, Chokes~Fixed Inductors
IMS02WWDEB220K40, Vishay authentic parts in stock from Vishay authorized distributors, order today, can ship immediately.
